EcoFlow Smart Home Panel 2 Backup Power Hub 240V For Whole Home Integration
Couldn't load pickup availability
Current Output: Varies by connected inverter and battery system
System Configuration: Smart Subpanel + Backup Integration Hub
Solar Technology: MPPT Compatible (via connected EcoFlow systems)
Power Source: Solar Powered, Battery Powered, Gas Generator Compatible
Size: Approx. 19.7 x 15.7 x 5.5 inches (500 x 400 x 140 mm)
Wattage: Supports multi-kilowatt systems (up to 25kWh expandable)
MPN: EFSmartHomePanel2-US
Item Length: 500 mm
Wire Gauge: Varies by installation (typically 10–4 AWG)
Current Type: AC
Manufacturer Warranty: 3-Year Warranty (Ask about CPS extended warranty)
Voltage: 240 Volts
Connector Type: Hardwired Terminals, Plug-and-Play Inverter Ports
Axis Orientation: Vertical Wall Mount
Features: Automatic 20ms Switchover Smart Energy Management System EcoFlow
Protection Properties: Overload, Surge, Grid Isolation, Auto Transfer
Pliability: Rigid
Maximum Input Power: Supports up to 36kW (via connected inverters)
Maximum Input Voltage: 240V AC
Inverter Technology: Compatible with Pure Sine Wave Inverters
Color: Black
Material: Metal Housing, Flame-Retardant Components
California Prop 65 Warning: No
Brand: EcoFlow
Type: Solar and Battery Power Supplies
Connector Configuration: 12-Circuit Subpanel, Inverter Expansion Ports
Model: EFSmartHomePanel2-US
Recommended Environment: Indoor/Outdoor
Resistance Properties: Overload Protection, Surge Protection
Charging Mode: Solar, Battery, Generator (via connected EcoFlow system)
Application: Whole-Home Backup, Energy Management, Emergency Power
Country of Origin: China
Power: Supports up to 3 x 12kW Generators and 15 x 6kWh Batteries
Item Weight: Approx. 26.5 lbs
Product Line: EcoFlow

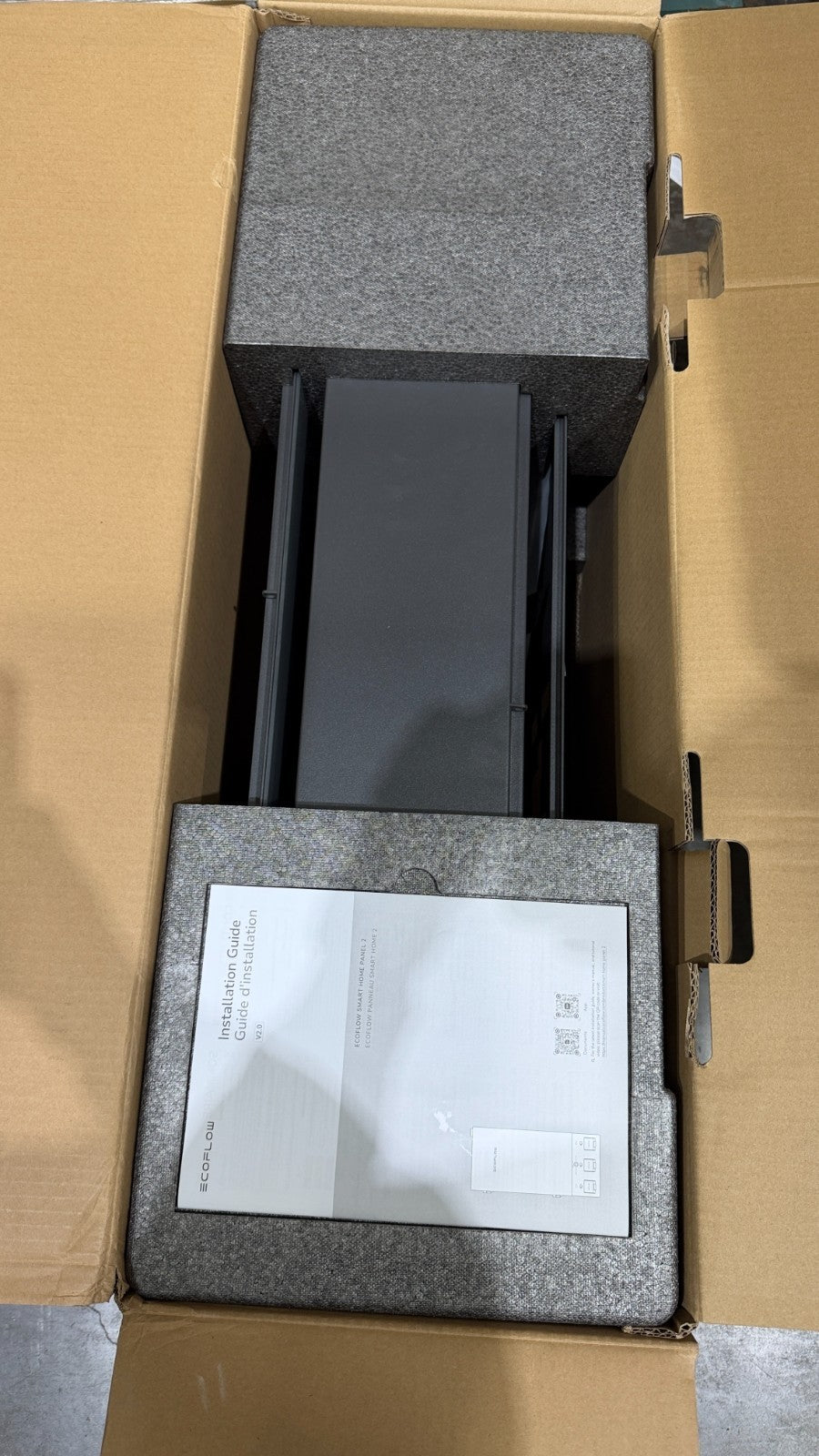

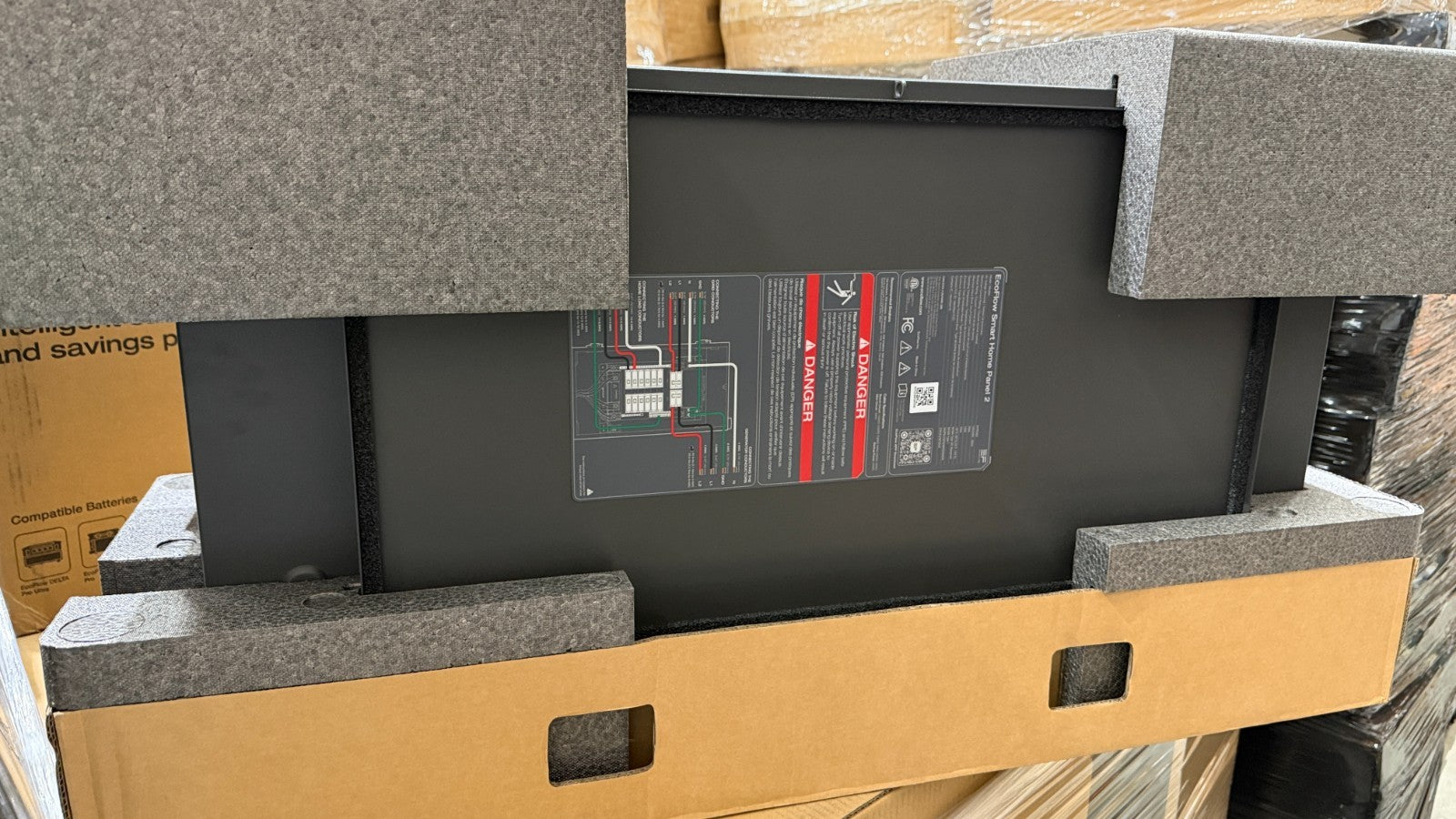

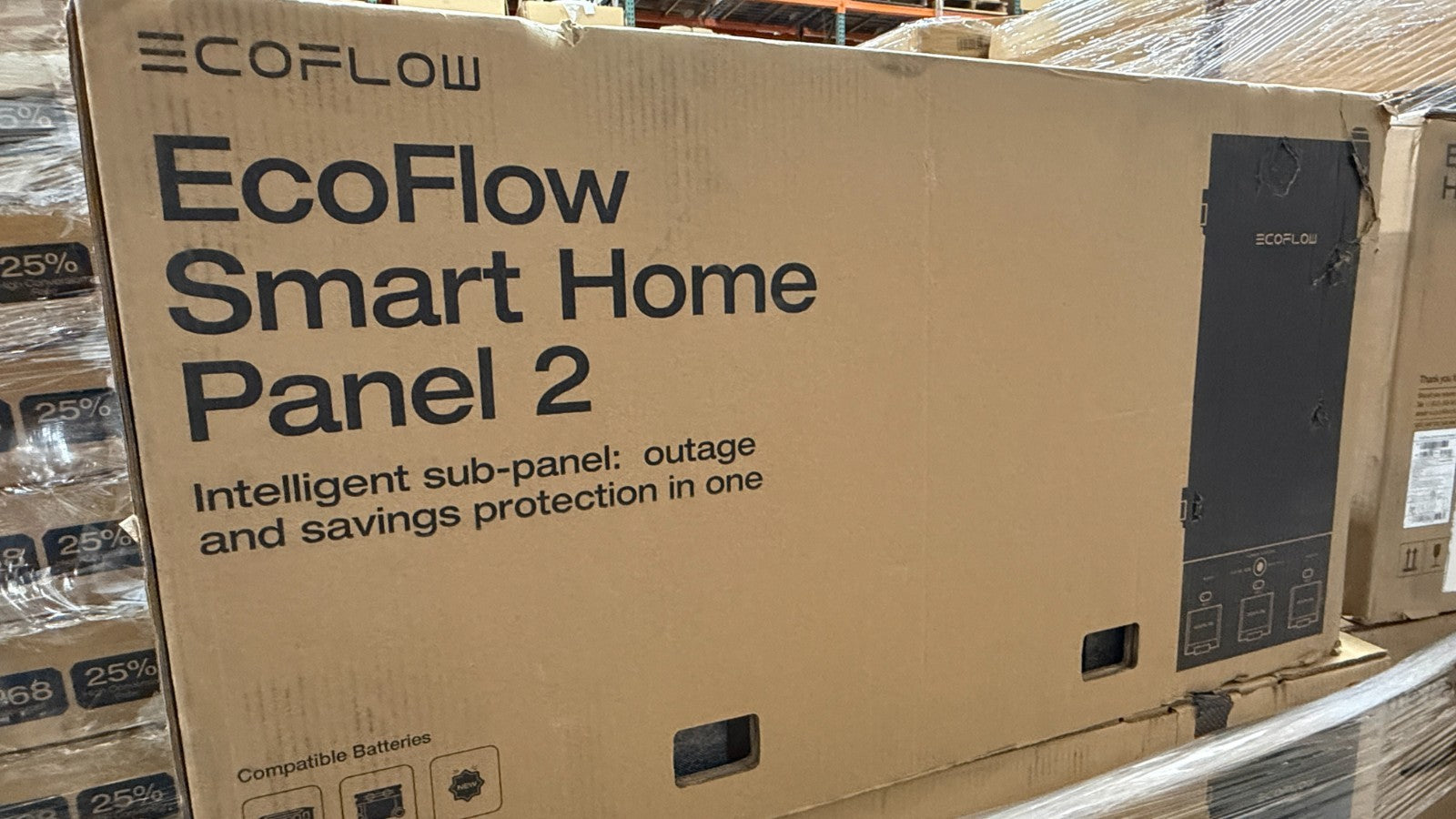

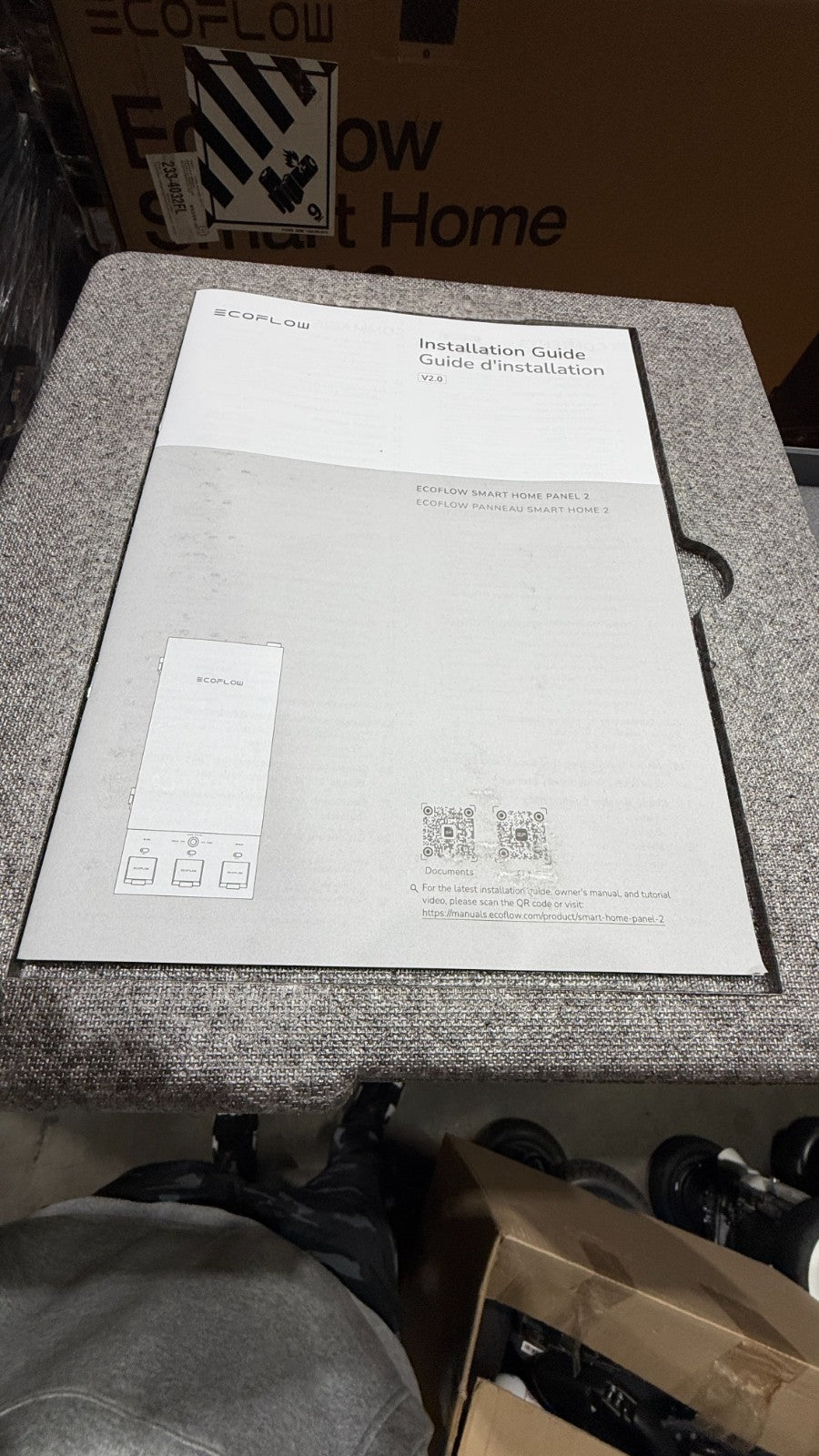

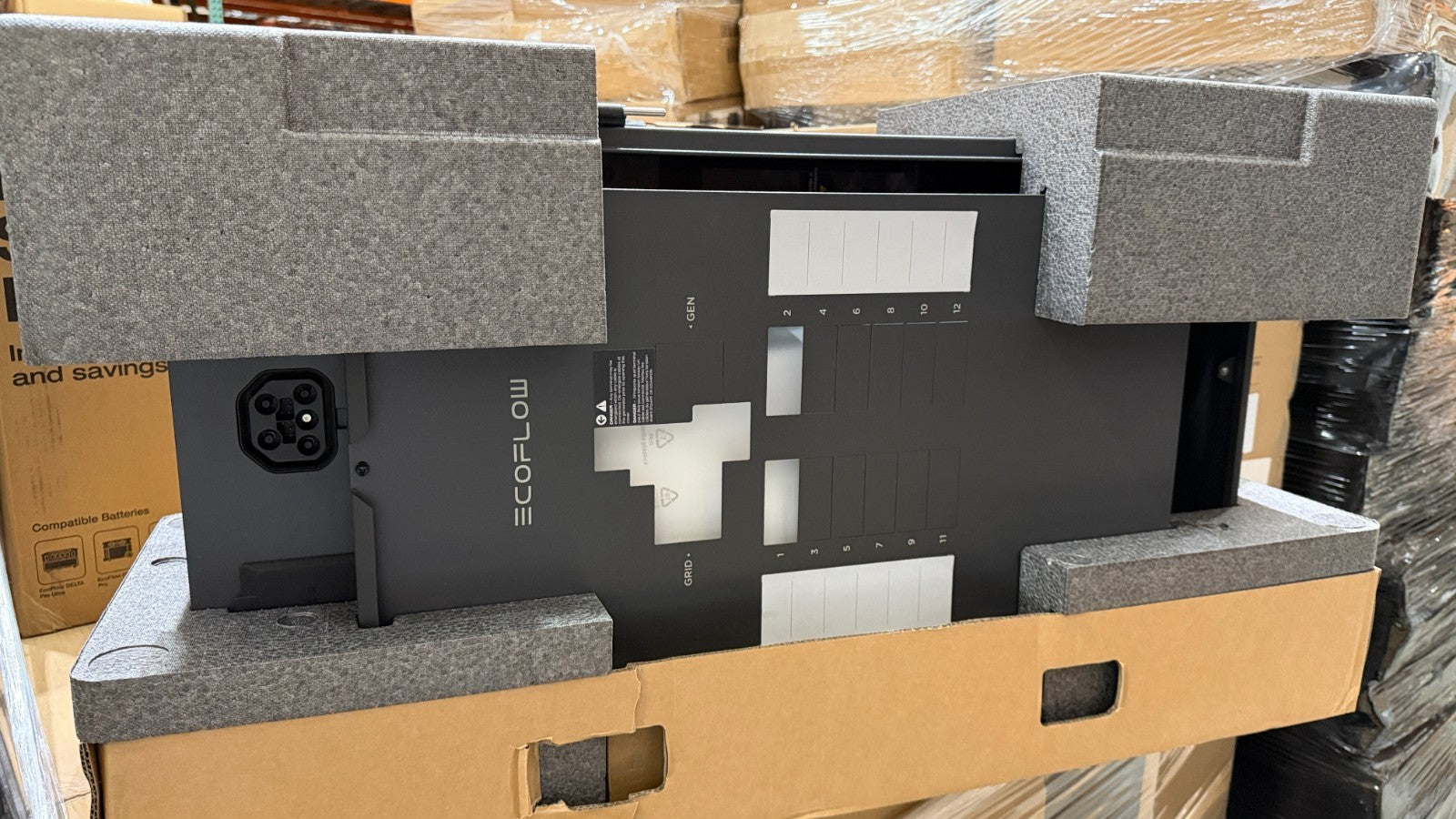

New never used, opened box to verify contents. Will come as pictured.About This Item
Whole-Home Backup System Hub
The EcoFlow Smart Home Panel 2 serves as the central hub for the DELTA Pro Ultra system, unlocking its full backup and energy-management capabilities. It connects directly to your home circuits and supports up to 3 plug-and-play inverters and 15 stackable 6kWh batteries. You can also pair it with up to 3 EcoFlow DELTA Pro 3 units and 6 Extra Batteries for up to 36kWh of storage. Designed for serious home power needs, this setup allows you to run and control every major household appliance with ease.
Intelligent Smart Energy Management
Smart Home Panel 2 seamlessly manages multiple power sources, including solar and gas. Use solar energy to reduce electricity costs and power your home with clean, renewable energy. When sunlight is limited, the system automatically connects to the EcoFlow Smart Generator 4000 (Dual Fuel) or any compatible 3–12kW portable gas generator, ensuring uninterrupted home power.
Ultra-Fast 20ms Automatic Transfer
During a power outage, Smart Home Panel 2 switches to backup power in as fast as 20 milliseconds, keeping your home powered without manual intervention. Even when you're away, your critical appliances stay running with no interruptions.
