Ruckus ZoneFlex R310 Indoor Access Point 901-R310-US02 Dual Band Wireless

Ruckus ZoneFlex R310 Indoor Access Point 901-R310-US02 Dual Band Wireless


Ruckus - 901-R310-XX02

The Ruckus ZoneFlex R310 delivers reliable 802.11ac wireless networking at the industry’s most affordable price point. Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation. Additional performance enhancements to signal gain can be attributed to the chipbased transmit beamforming capability adding 3dB when associated to a compatible client. Each ZoneFlex R310 integrates Ruckus-patented BeamFlex, a software-controlled, high gain antenna array that continually forms and directs each 802.11ac packet over the best performing signal path. The ZoneFlex R310 automatically selects channels for highest throughput potential using Ruckus ChannelFly dynamic channel


  • IEEE 802.11a/b/g/n/ac
  • 2.4GHz and 5GHz
  • Supported Data Rates

  • 802.11n/ac: 6.5Mbps – 173.4Mbps (20MHz) 13.5Mbps – 400Mbps (40MHz), 29.3Mbps - 867Mbps (80MHz)
  • 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
  • 802.11b: 11, 5.5, 2 and 1 Mbps
  • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
  • Radio Chains

  • 2 x 2
  • Spatial Streams

  • 2
  • Channelization

  • 20MHz, 40MHz, 80MHz
  • Operating Channels

  • US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13
  • 5 GHz channels: Country dependent
  • Frequency Band

  • IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
  • IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz
  • Bssid

  • Up to 8 per radio (16 per AP)
  • Wireless Security

  • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
  • Authentication via 802.1X with the ZoneDirector or SmartZone, local authentication database, support for RADIUS, LDAP, and ActiveDirectory


  • DC Input: 12 VDC 1.0A (12v power adapter not included)
  • Power over Ethernet 802.3 af
  • Physical Size

  • 13.8cm (L), 13.5cm (W), 3.3cm (H)
  • 5.4 in (L), 5.3 in (W), 1.3 in (H)
  • Weight

  • 220 gms (0.485 lbs)

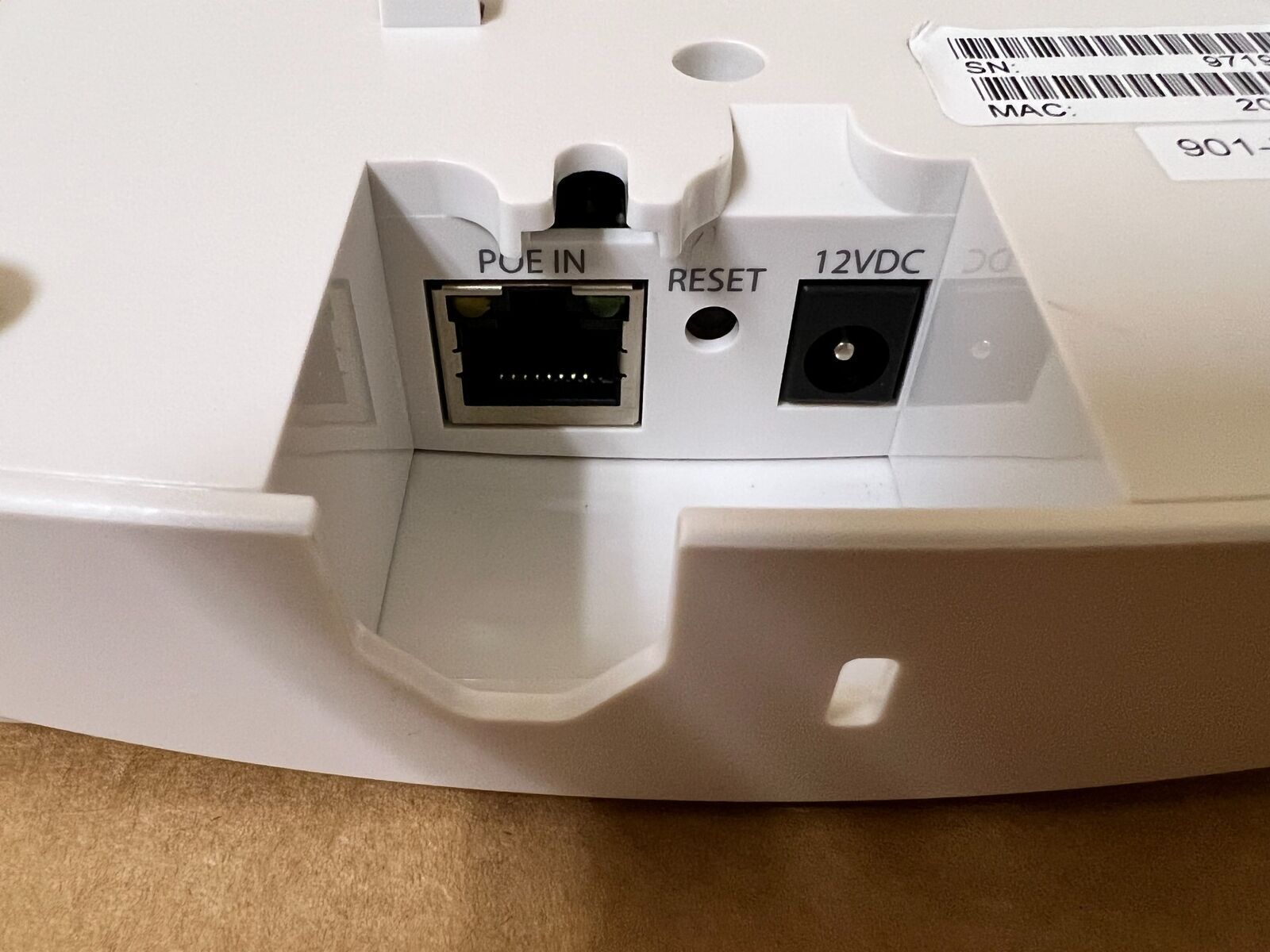

  • Ethernet Ports

  • 1 auto MDX, auto-sensing 10/100/1000Mbps, RJ-45, POE port
  • Lock Options

  • Hidden latching mechanism
  • Kensington Lock Hole
  • T-bar Torx
  • Environmental Conditions

  • Operating Temperature: 0°C - 40°C
  • Operating Humidity: 10% - 95% non-condensing
  • Power over Ethernet Input

  • Idle: 6W
  • Typical: 7.8W
  • Peak: 11W
