Brand: Tesla
Voltage: 230v Single phase
Color: Silver
Number of Phases: 1
Connector Type: NACS
Amperage: 40
Model: 10050068-01-E
Manufacturer Part Number: 10050068-01-E
Level: 2
Material: Plastic
Country of Origin: United States
Charging Rate: 9.6kw
UPC: N/A

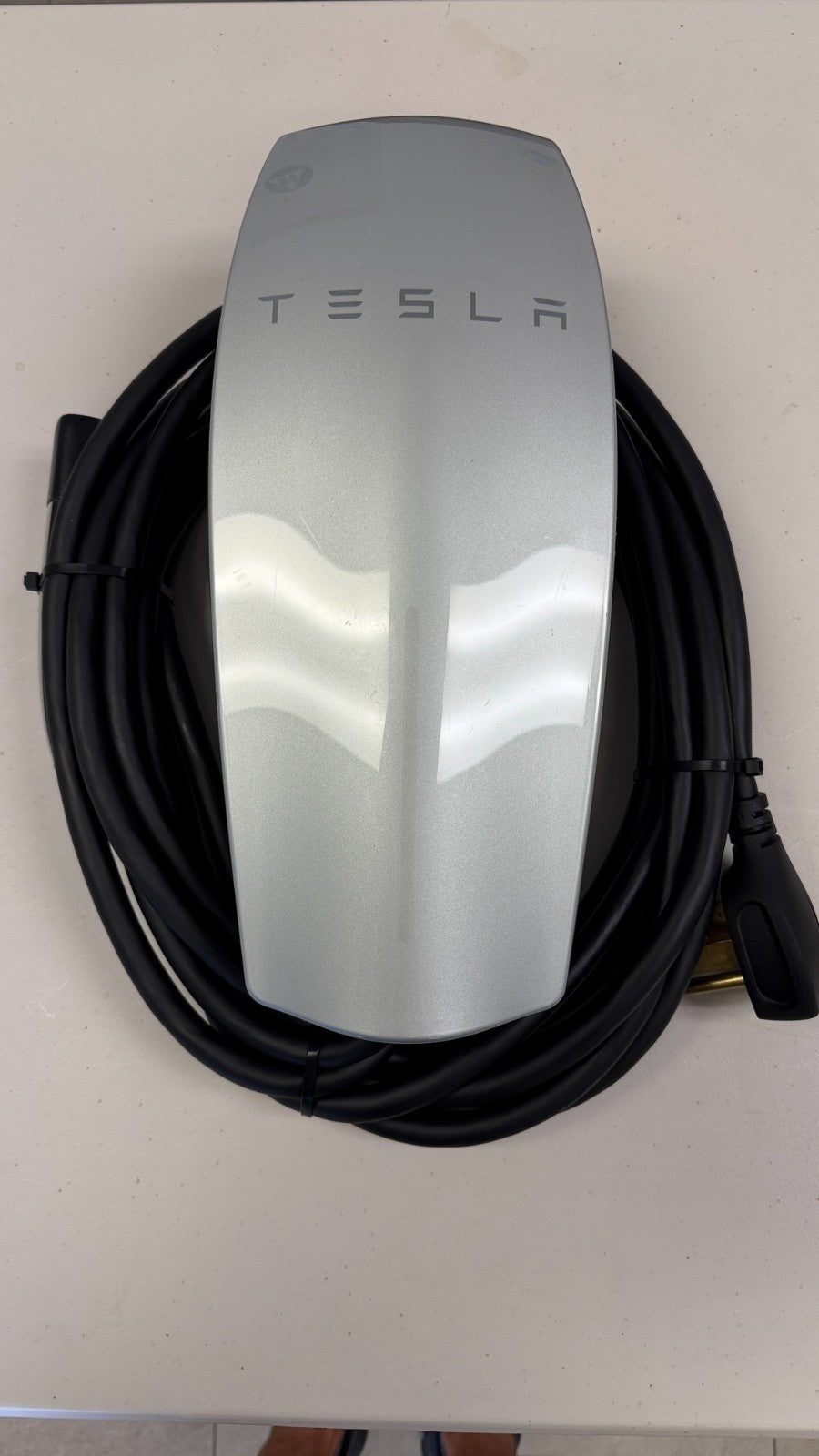

Genuine Tesla Wall Connector / Wall Charger – NEMA 14-50
Part Number: 10050068-01-E
For sale is a genuine Tesla Wall Connector featuring a NEMA 14-50 plug, allowing installation without permanently hardwiring the charger into your electrical system.
This unit is USED, TESTED, and FULLY WORKING. It has been tested for proper operation prior to sale.
INCLUDED
- Genuine Tesla Wall Connector
- NEMA 14-50 power cord/plug

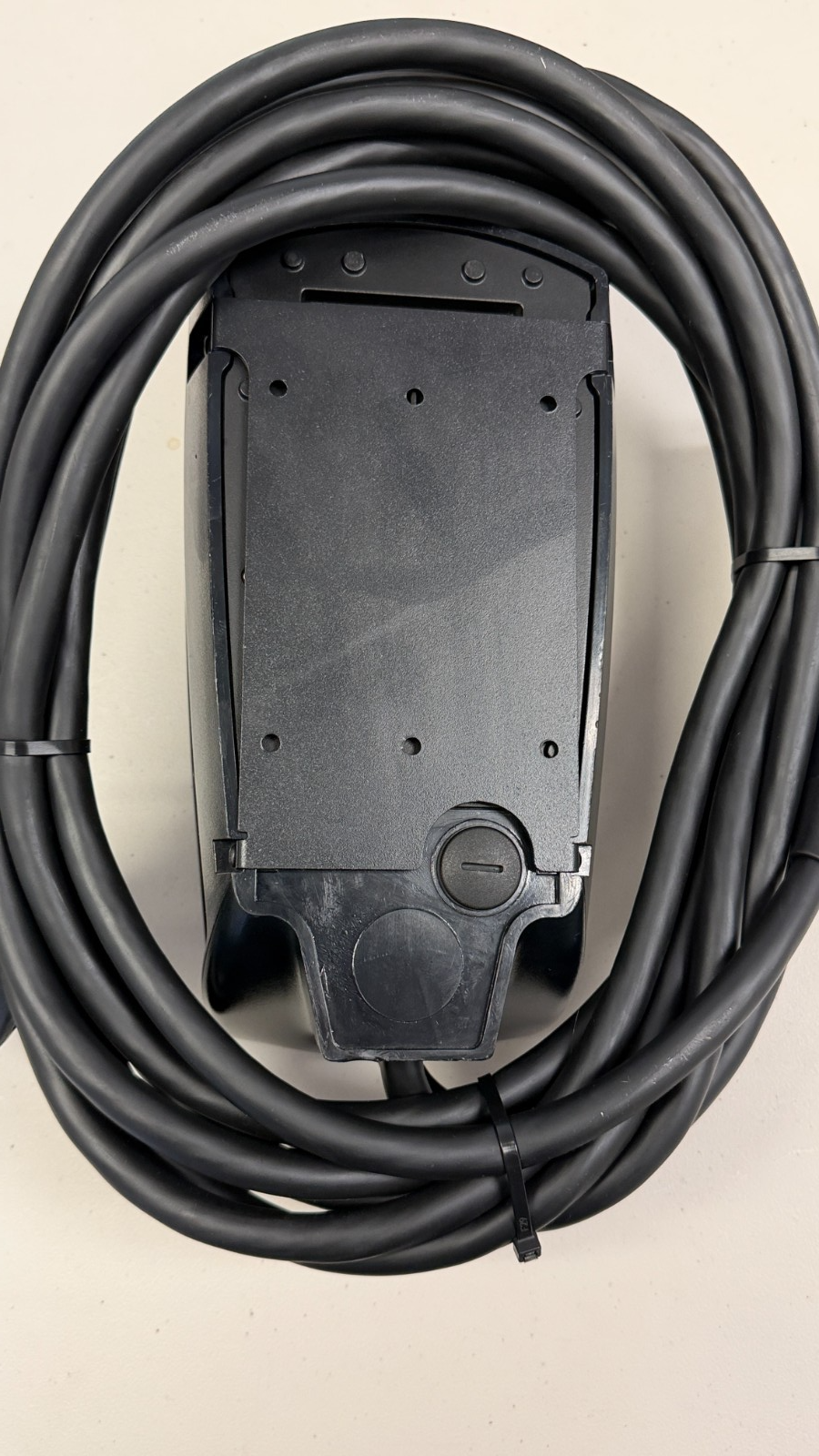

- Wall mounting bracket

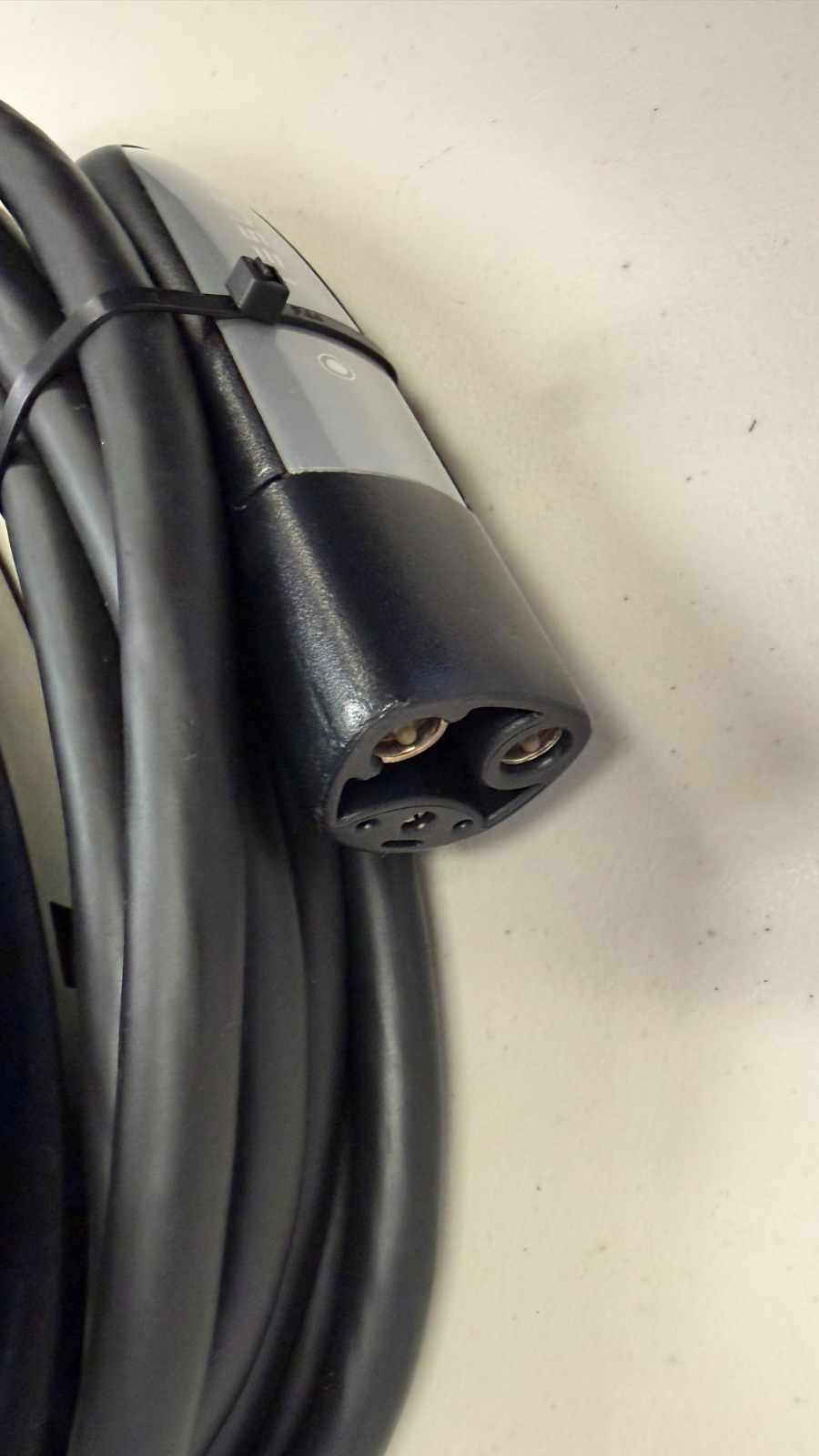

- Charging cable as pictured
Please review all listing photos for the exact condition and items included.
SPECIFICATIONS
- Manufacturer: Tesla
- Part Number: 10050068-01-E
- Connection Type: NEMA 14-50 Plug
- Input Voltage: 208V / 240V AC Single Phase
- Maximum Output: 40 Amps
- Maximum Power: Up to 9.6kw kW
- Frequency: 50–60 Hz
- Recommended Circuit: 50A Single-Phase Circuit
- Enclosure Rating: Type 3R
- Operating Temperature: -22°F to 122°F (-30°C to 50°C)
- Wall Connector Dimensions: Approx. 15" H × 6.3" W × 5.5" D
- Power Cord Length: Approx. 35.5"
- Installation: Indoor or outdoor wall/post installation
For Tesla Wall Connector 10050068-01-E NEMA 14-50:
- Input: 208–240V AC
- Phase: Single phase
- Maximum output: 40A
- Maximum power: approximately 9.6 kW at 240V
- Plug: NEMA 14-50
- Typically used on a 50A circuit
CONDITION
Used – Tested – Fully Working
The charger may show normal cosmetic signs of previous installation and use, including light scratches, scuffs, or marks. Please review the photos carefully for cosmetic condition.

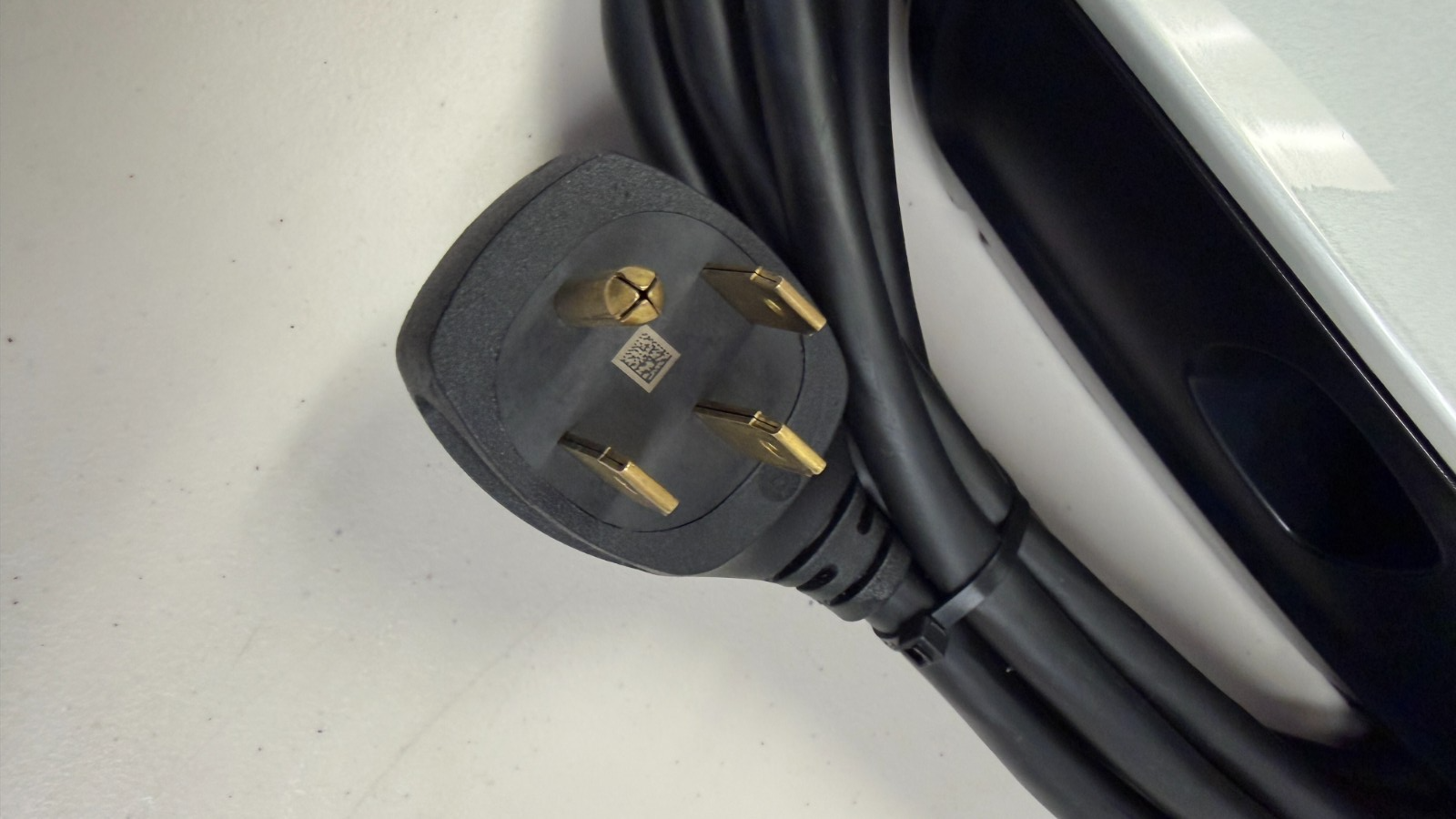

NEMA 14-50 PLUG-IN MODEL
Unlike a permanently hardwired Wall Connector, this version is equipped with a NEMA 14-50 plug and is designed to connect to a properly installed compatible 240V outlet.
Professional installation of the appropriate NEMA 14-50 outlet/circuit is recommended. Actual charging speed will depend on the Tesla model, onboard charger, electrical supply, and other factors.
Please verify part number 10050068-01-E and compatibility with your application before purchasing.
